EHIK Pumps manufactures replacement pick-up tubes (pitot tubes) for Roto-Jet pick-up tube models S-252, S-266, S-338, S-375, D-375, S-404, S-433, D-433, S-484, D-484, S-600 and D-600. Order by model number: no old part has to be returned, most models are in stock, and a wear-resistant version can be made for every model.
Quote the model from your old pick-up tube, pump records or parts list. Each model below can be supplied as a new EHIK replacement.
| Roto-Jet pick-up tube model | EHIK replacement | Type | Old part required | Wear-resistant version |
|---|---|---|---|---|
| S-252 | Available | Single nozzle | No | Available |
| S-266 | Available | Single nozzle | No | Available |
| S-338 | Available | Single nozzle | No | Available |
| S-375 | Available | Single nozzle | No | Available |
| D-375 | Available | Double nozzle | No | Available |
| S-404 | Available | Single nozzle | No | Available |
| S-433 | Available | Single nozzle | No | Available |
| D-433 | Available | Double nozzle | No | Available |
| S-484 | Available | Single nozzle | No | Available |
| D-484 | Available | Double nozzle | No | Available |
| S-600 | Available | Single nozzle | No | Available |
| D-600 | Available | Double nozzle | No | Available |
Model not listed, or no model number on the part? Send the pump nameplate, photographs and key dimensions and we will identify the tube.
Replacement pick-up tubes for Roto-Jet model S-375 (single nozzle) and D-375 (double nozzle). Both are among the pick-up tubes we supply most often.
Replacement pick-up tubes for Roto-Jet model S-484 (single nozzle) and D-484 (double nozzle). Both are among the pick-up tubes we supply most often.
You do not need to send back your worn pick-up tube. We supply a new part against the model number, so the spare can be on site before the old tube is removed.
Most pick-up tube models are in stock and ship after order confirmation. Non-stock models are manufactured in 30 working days.
For liquids with a high concentration of hard particles, a wear-resistant version of any model can extend the replacement interval from 1–3 weeks for a standard tube to 2–3 months.
In a pitot tube pump the rotor case spins the liquid into a fast-moving ring. The stationary pick-up tube sits in that ring with its inlet facing the flow, collects the liquid and converts its velocity into discharge pressure.
Because the inlet tip meets the liquid at full speed, it is the part of the pump that wears first, especially when the liquid carries solids or other abrasive particles. Typical signs of a worn pick-up tube are:
See how pitot tube pumps work for the full operating principle.
Pick-up tubes are made from 17-4PH stainless steel as standard, the grade most commonly used for pick-up tubes. Duplex stainless steel or other materials can be supplied to suit the liquid and your specification.

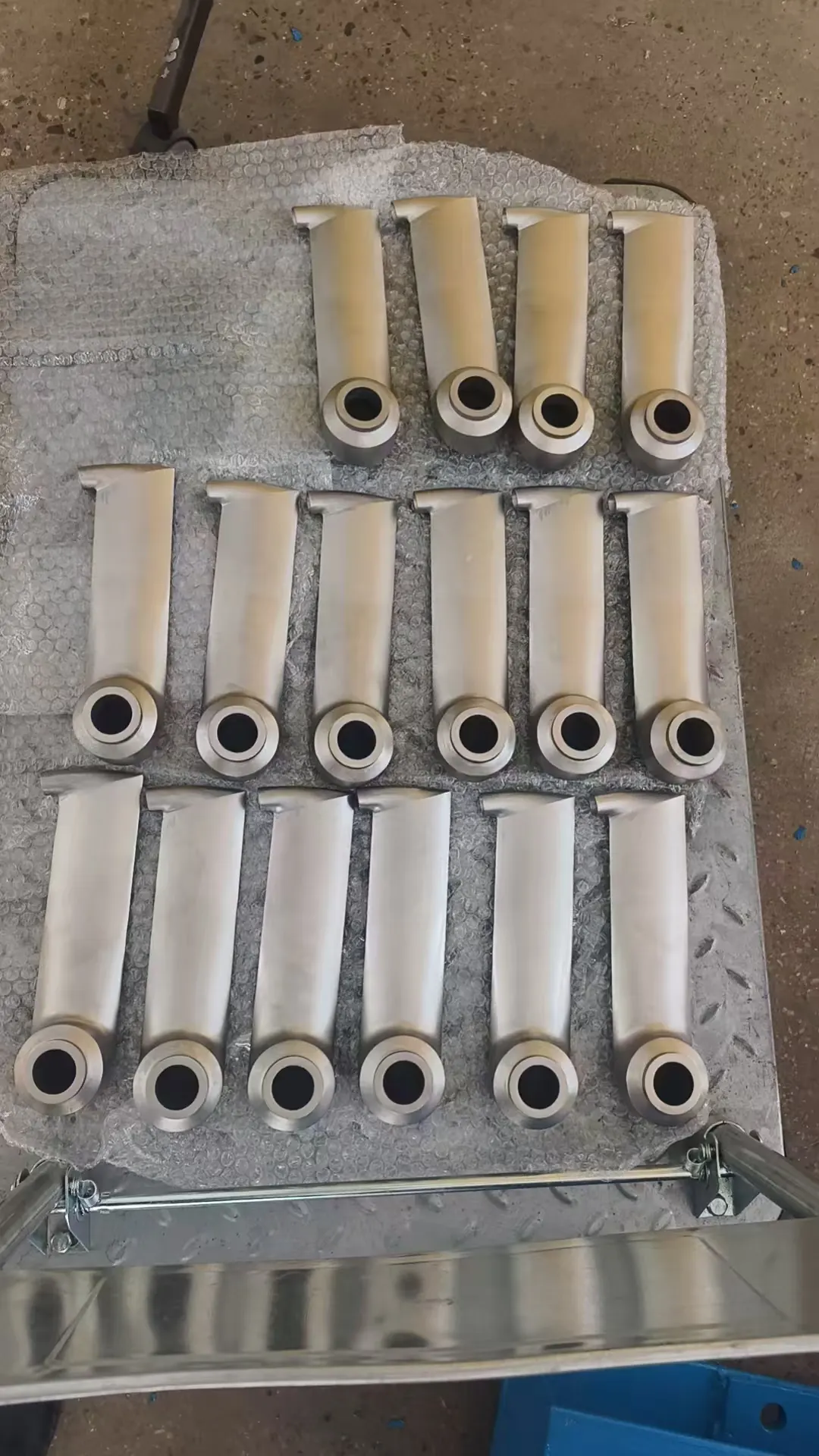

Castings and machined blanks are held in stock, so non-stock models can be finished to the required dimensions without starting from raw material.
Finished pick-up tubes and rotor assemblies are kept in our warehouse for fast replacement supply.
Email or WhatsApp the pick-up tube model, for example S-433, and the quantity.
Tell us the liquid and whether it carries solids, so we can advise on the wear-resistant version.
We confirm stock or the manufacturing lead time and send the quotation.
Stock tubes ship after order confirmation; non-stock models follow the 30-working-day lead time.
Need a rotor assembly as well? See all Roto-Jet replacement parts, or plan a complete Roto-Jet pump replacement.
S-252, S-266, S-338, S-375, D-375, S-404, S-433, D-433, S-484, D-484, S-600 and D-600. For other models, send the pump nameplate, photographs and dimensions.
S models, such as S-375 or S-484, are single-nozzle pick-up tubes. D models, such as D-375 or D-484, are double-nozzle pick-up tubes. EHIK supplies replacements for both types.
No. EHIK supplies new pick-up tubes against the model number, so no old part or core has to be returned.
Most models are in stock and ship after order confirmation. Non-stock models are manufactured in 30 working days.
17-4PH stainless steel is the standard material. Duplex stainless steel or other materials can be supplied to suit the liquid and customer specifications, and a wear-resistant version can be made for every model.
When the liquid carries a high concentration of hard particles and standard tubes need replacing every few weeks. In such service the wear-resistant version can extend the interval from 1–3 weeks to 2–3 months.
No. They are replacement parts manufactured by EHIK Pumps, an independent manufacturer that is not affiliated with the Roto-Jet trademark owner.
Send the pick-up tube model and quantity. We will confirm stock or the lead time.
