Pitot Tube Pump Case Studies: Replacing Multistage, Plunger and Belt-Driven Pumps

These installations show EHIK pitot tube pumps replacing multistage centrifugal pumps, a plunger pump and belt-driven pitot tube pumps in carbon black, chemical, wastewater and natural gas service.

Discuss Your Replacement Replacement Process

EHIK pitot tube pump installed at the PetroChina Anyue purification plant

Documented Energy Saving: PetroChina Shunan Gas Mine

39.5% less electricity

For the same volume of gas-field water pumped, from site meter readings.

95 kW → 45 kW

Motor rating after replacing the multistage centrifugal pump.

About 343,700 kWh a year

Illustrative annual electricity saving.

At Kong 6 Well in the Zigong Operating Area of PetroChina’s Shunan Gas Mine, EHIK replaced the multistage centrifugal pump in 2015. The motor rating fell from 95 kW to 45 kW, and site meter readings showed 39.5% lower electricity use for the same volume of gas-field water pumped, with stable operation and fewer repairs.

Replacement Projects

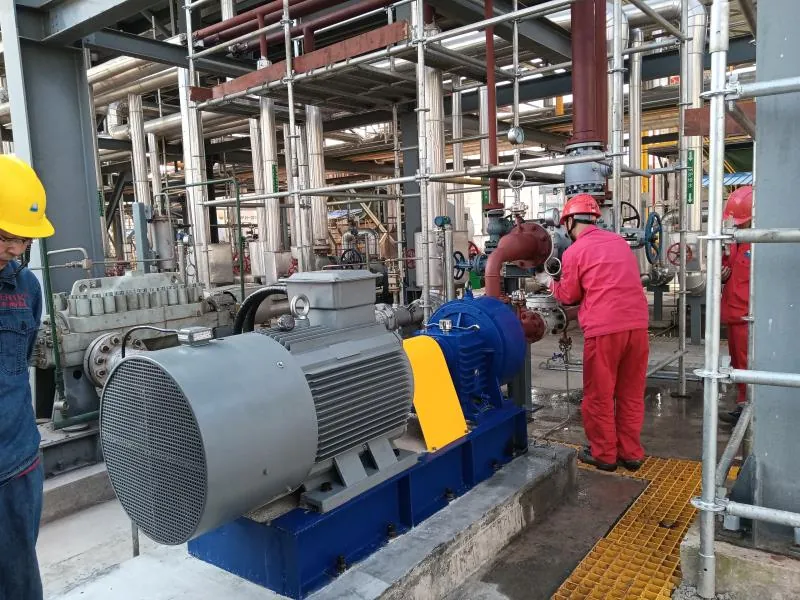

EHIK pitot tube pump at the PetroChina Anyue natural gas purification plant

PetroChina Southwest Oil & Gasfield, Anyue Purification Plant

Replaced: multistage centrifugal pumps. Service: natural gas purification plant.

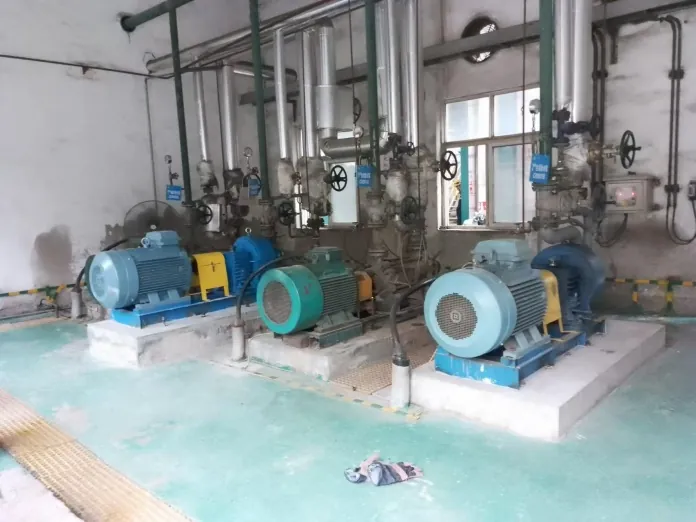

Pingmei Group, Jingbao Xin’ao

Replaced: multistage centrifugal pumps. Year: 2023–2024.

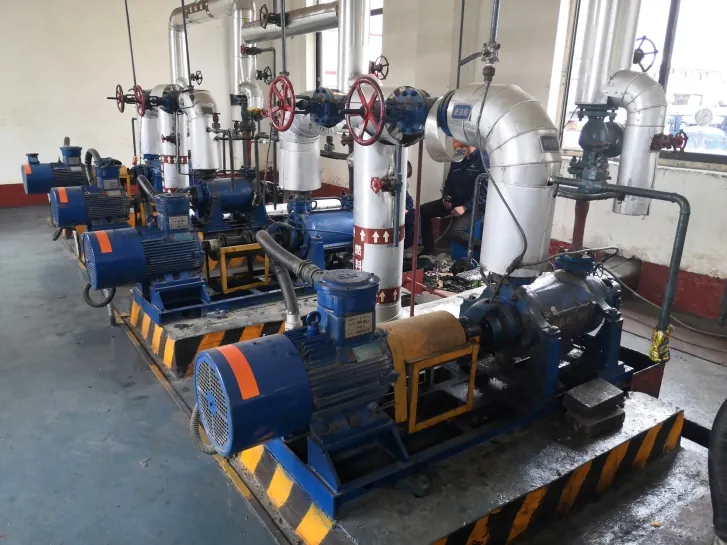

Shandong Naisite

Replaced: multistage centrifugal pumps. Service: feedstock oil and fuel oil pumps. Year: 2021.

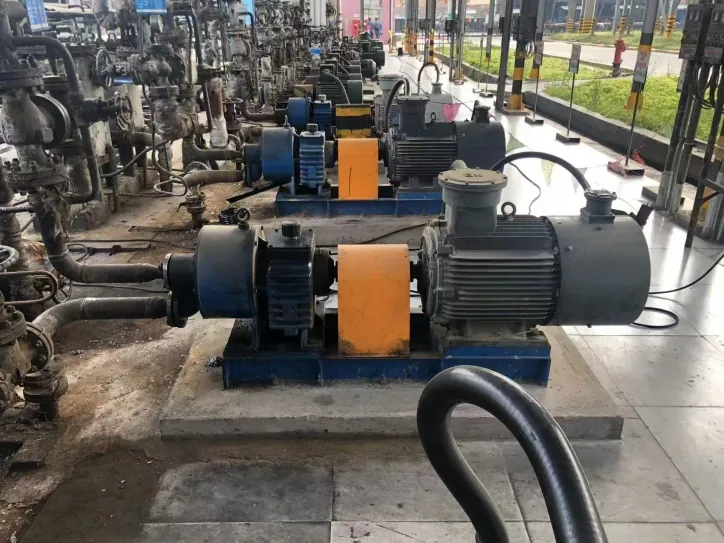

Yunwei Feihu, Lines 1 and 2

Replaced: belt-driven pitot tube pumps from another supplier. Service: feedstock oil pumps. Year: 2021.

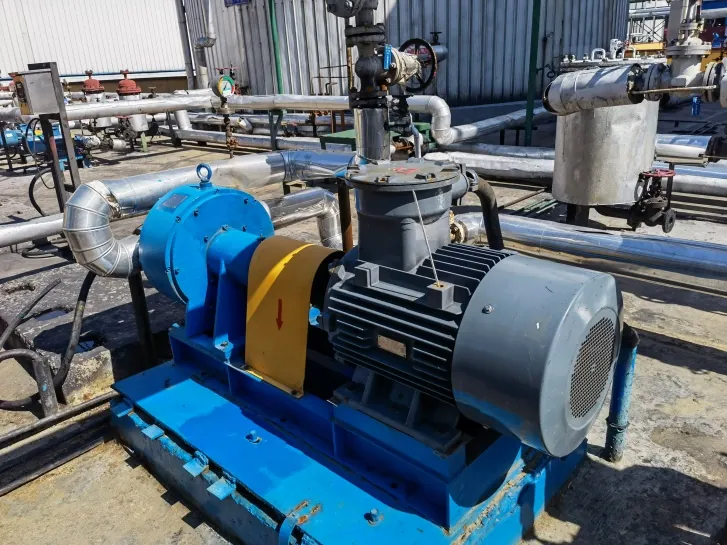

Longxing Chemical

Replaced: belt-driven pitot tube pumps from another supplier.

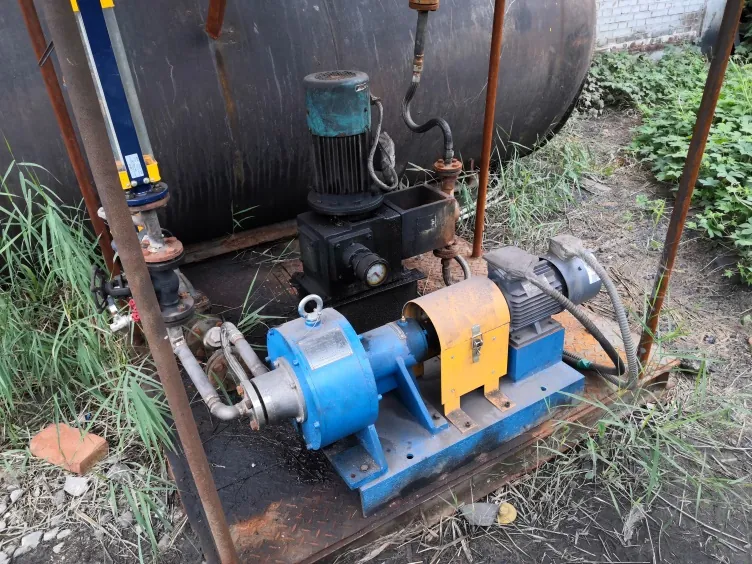

Shanxi Sanqiang New Energy

Replaced: a plunger pump. Service: ammonium nitrate wastewater. Year: 2021.

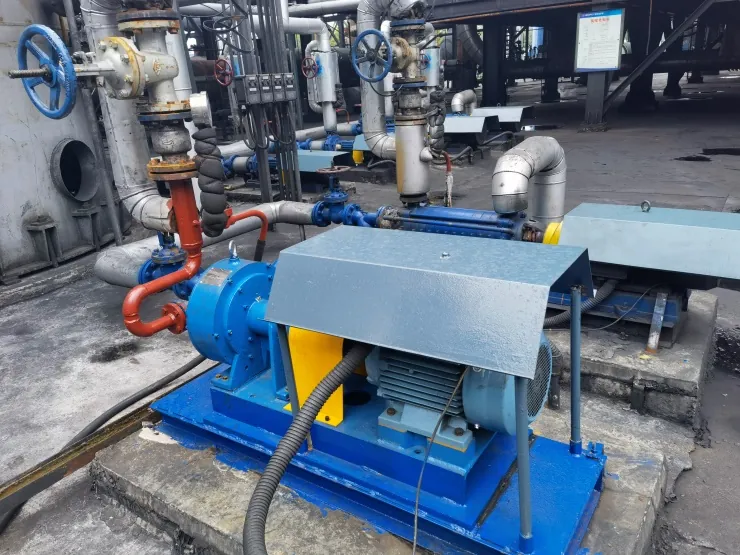

Qingzhou Bo’ao, Shandong

Replaced: multistage centrifugal pumps. Service: wastewater.

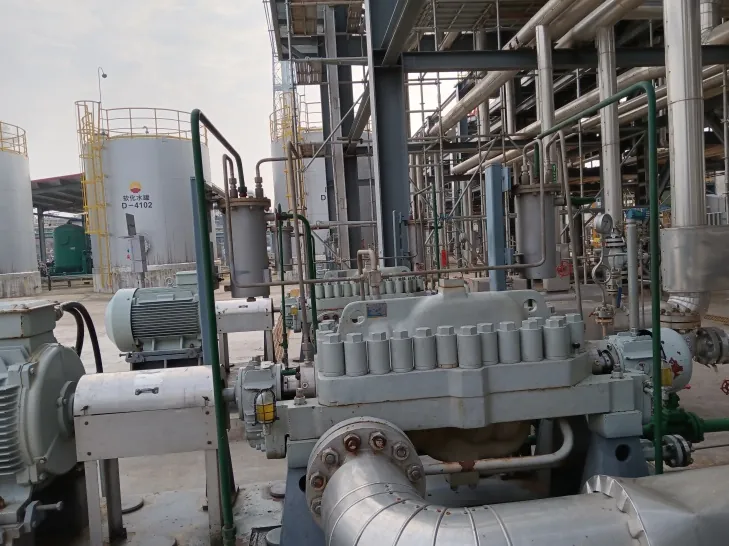

Multistage centrifugal pump before replacement at the Anyue purification plant

Before: Multistage Centrifugal Pump

A multistage pump of the kind replaced at the Anyue purification plant. One pitot tube pump stage takes the place of the full stack of impellers.

Applications in Service

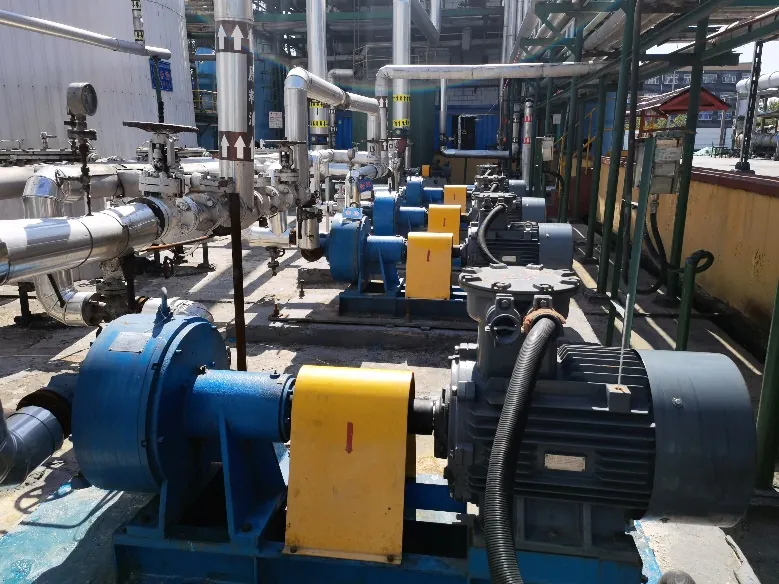

Carbon Black

Feedstock oil, fuel oil, binder and additive pumps.

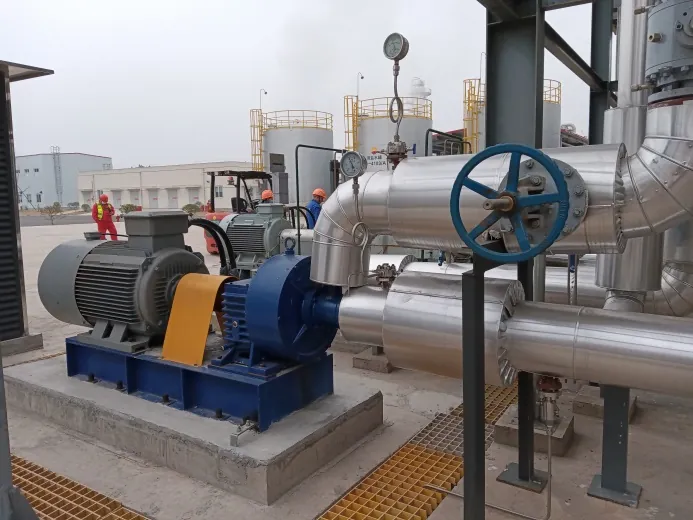

Boiler feed pump at a natural gas purification plant

Gas Plant Boiler Feed

Boiler feed pumps at natural gas purification plants.

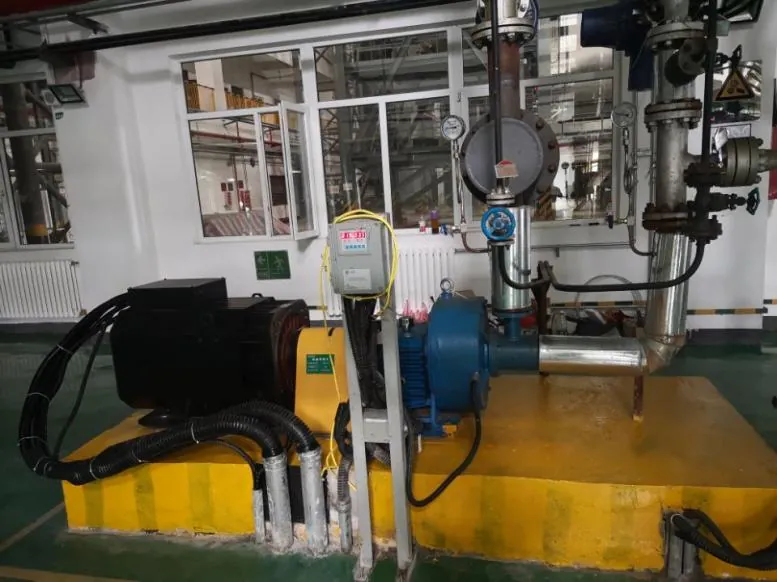

Boiler feed pump in a waste-to-energy plant

Waste-to-Energy Boiler Feed

Boiler feed pumps in waste-to-energy power plants.

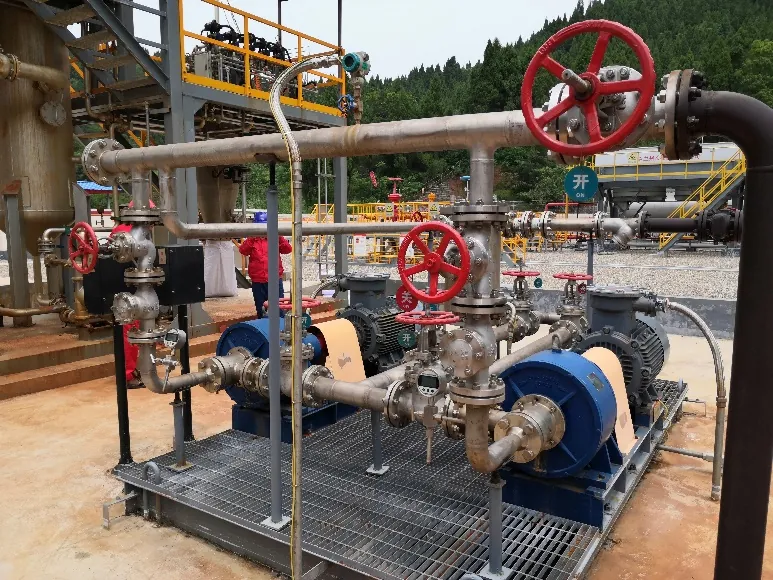

Skid-mounted pitot tube pump at a PetroChina site

Oil and Gas Skids

Skid-mounted pumps at PetroChina sites, including sour-water service.

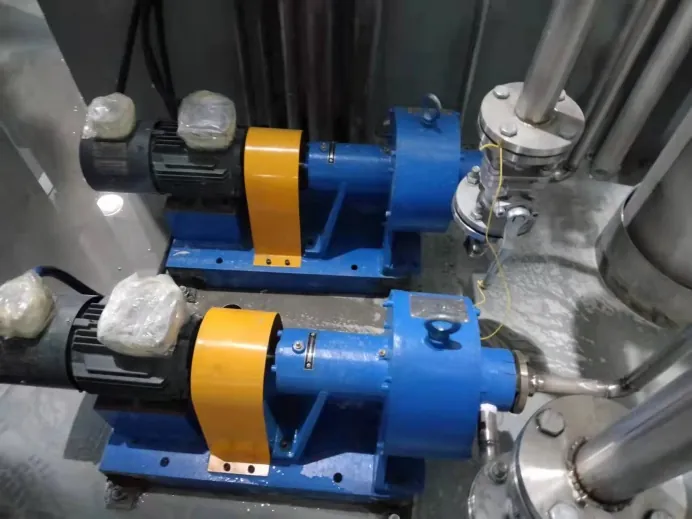

High-pressure pumps supplying a paper mill water-jet cutter

Water-Jet Cutting

High-pressure water supply for water-jet cutting in paper production.

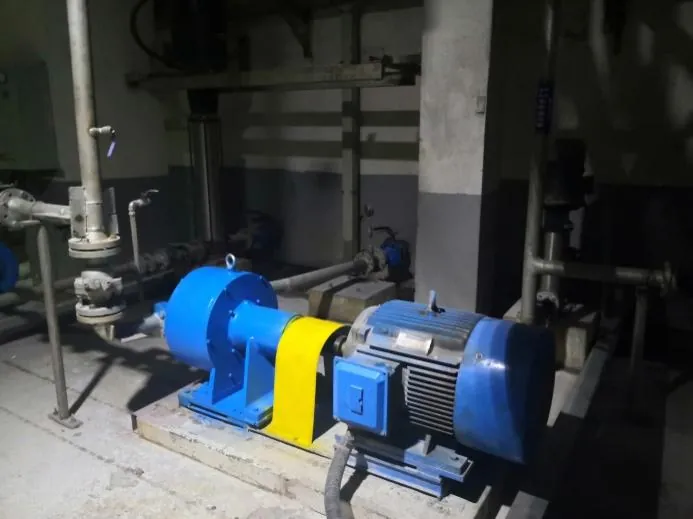

Pitot tube pump for wire and net-cage flushing in a paper mill

Paper Mill Cleaning

High-pressure flushing and cleaning pumps, including Vinda net-cage flushing.

Frequently Asked Questions

Which pumps has EHIK replaced with pitot tube pumps?

Multistage centrifugal pumps, a plunger pump and belt-driven pitot tube pumps from another supplier, in natural gas, carbon black, chemical and wastewater service.

How much energy can a replacement save?

At PetroChina’s Shunan Gas Mine the motor rating fell from 95 kW to 45 kW and electricity use dropped by 39.5% for the same volume of water pumped. Savings depend on the duty and the pump being replaced.

Can EHIK replace a Roto-Jet pump in the same way?

Yes. The same selection process is used for an installed Roto-Jet® pump: the duty, materials and installation dimensions are compared before an alternative is proposed.
